Weighing Module SIWAREX FTA

Share this post

Submit to FacebookSubmit to Google PlusSubmit to TwitterSubmit to LinkedIn

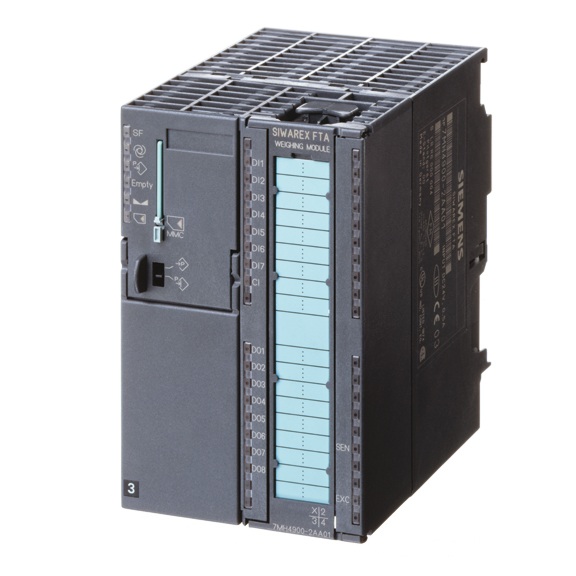

weighing module siwarex ftaWeighing module SIWAREX FTA

Description

SIWAREX FTA is a calibratable and versatile weighing electronics for SIMATIC S7, C7 and PCS7. It can be used for automatic and non-automatic weighing, e.g. for the production of mixtures, filling, loading, monitoring and bagging. The SIWAREX FTA function module is integrated in SIMATIC S7/PCS7, and uses the features of this modern automation system, such as integral communication, diagnostics and configuration tools.
By setting a parameter in SIWAREX FTA, one of the following scale types can be activated:
NAWI (Non Automatic Weighing Instrument) conforming with OIML R76
For example: Hopper weighing, Fill level scale, Platform scale, Crane scale
AWI (Automatic Weighing Instrument) conforming with OIML R61
For example: Sacking system scale, Filling scale
Automatic Catchweighing Instrument conforming with OIML R51
For example: Single component scale for filling and emptying scales, Multi-component scale, Static control scale for weight measurement
Discontinue Totalizing Automatic Weighing Instrument conforming with OIML R107
For example: Emptying scale, Loading scale
The conditions for legal-for-trade applications with SIWAREX FTA you will find in the FAQs

Detail

Integration in automation system S7-400, PCS7, S7-300, C7, IM151-7 CPU Via ET 200M, Direct integration in S7-300
Communication interfaces SIMATIC S7 (P-Bus), RS485, RS 232, TTY
EU type approval as non-automatic weighing machine, trade class III 3 x 6000 d, ≥ 0,5 µV/e
Calibratable
Internal resolution 16 million parts
Internal/external updating rate 400/100 Hz
Approvals ATEX 95, FM, CULUS Haz.Loc.
EU type approval (OIML R76)
EU prototype test to MID (OIML R51, R61, R107)

Benefits

  • Uniform structure and universal communication through the integration in the SIMATIC S7 and SIMATIC PCS 7
  • Application in the decentralized system concept by connecting to PROFIBUS DP / PROFINET through ET 200M
  • Weight or force measurement to resolutions of 16 million parts
  • Precision of 3 x 6000 d, calibratable
  • Fast dosing with fast communication
  • Calibratable display with SIMATIC HMI Standard Operator Panels
  • Stepless or incremental dosage control
  • Exact dosage switching signals (< 1 msec)
  • Definable input and output parameters
  • Definable parameters for the most diverse of applications
  • Flexible adjustment for different requirements
  • Simple parameter definition with the SIWATOOL FTA program
  • Theoretical adjustment without adjustment weights
  • Modules can be exchanged without readjusting the scale
  • Scale progress recording/logging
  • Calibratable Alibi memory
  • Can be used for Ex-applications
