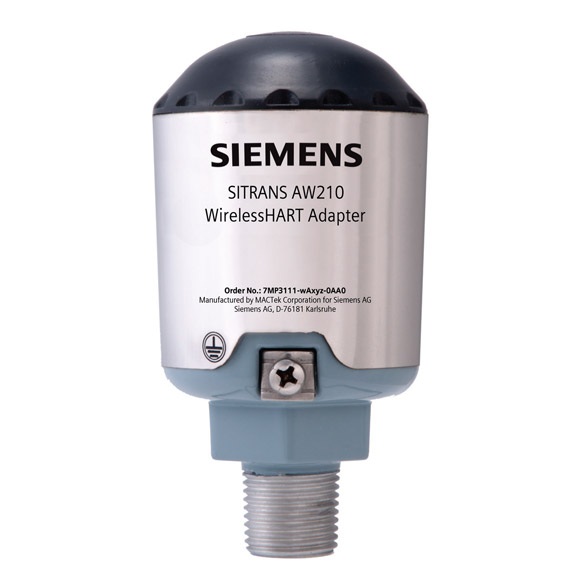

sitrans aw210SITRANS AW210 - WirelessHART adapter


The WirelessHART adapter is a communications component which integrates different field devices in a WirelessHART network. The field devices will be connected via HART or 4 … 20 mA. The adapter supports the standard WirelessHART protocol.


Input: One-device input channel One point-to-point connection with a HART device or a 4...20 mA device or up to eight externally powered HART devices operated in multidrop mode
Input: Communication type HART communication in multi drop mode (standard HART V7.1), 4...20 mA current signal in point-to-point connection
Output WirelessHART radio in 2.4 GHz


  • Explosion proof type: Intrinsic safe, Explosion proof
  • HART/4...20 mA wireless signal transfer
  • No extra wiring costs with loop power supply
  • Up to eight devices connected in multi drop mode
  • Configurable with standard tools support EDD – e. g. SIMATIC PDM, HART handheld communicator
  • Supports burst mode and event notification for adapter and sub devices
  • Good and simple retrofitting or extension solution for wired devices
